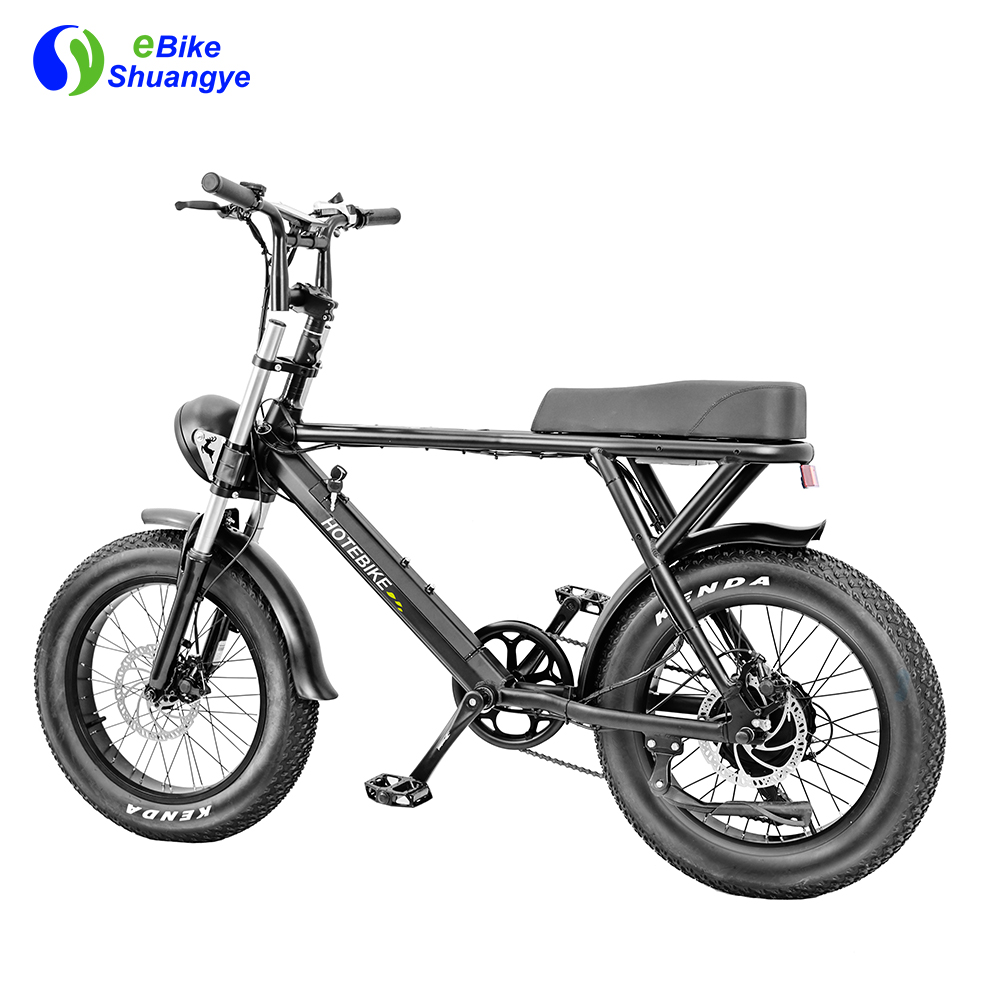

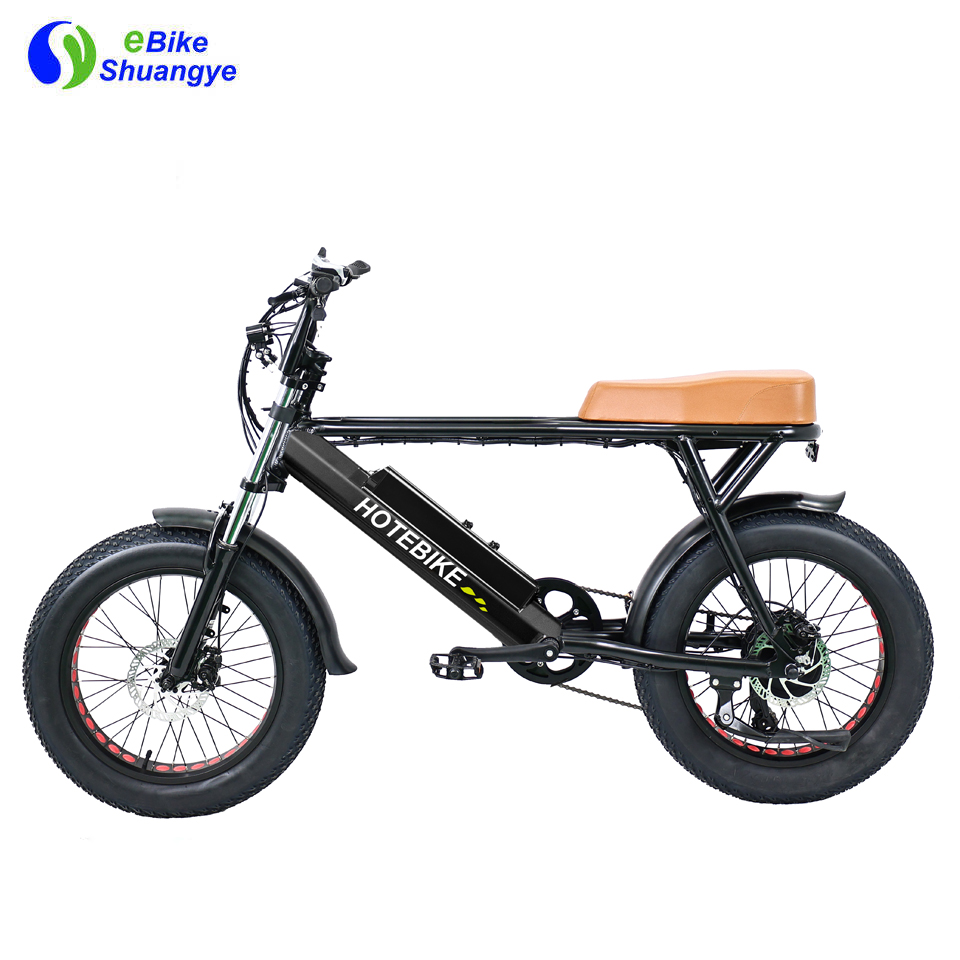

750W 500W Motor Fat Tire Electric Bicycle 20 Inch Aluminum Alloy Frame

Motor: 36V 500W/750W motor
Battery: 48V 10AH/13AH hidden batter
Max Speed: 30km/h-35km/h
Max Range: 40km-60km per charge
Charging time: 4-6 hours
Display: LCD Digital Screen
Brake: Mechanical 160 disc brake system
Throttle: Thumb Throttle
Pedal assist level: 5 level

Product Details

electric bike

electric bike electric bike electric bike

Specification
Standard
Optional(MOQ≥100)
Colour
White/Black
OEM
Motor
48V 500W /750Wgearless brushless hub-motor
●48V 750W gearless brushless hub-motor
●bafang motor
Max speed
40 km/h
35-45 km/h
Battery
36V 13AH 13.6AH lithium battery with key
●48V 13AH,(LG cells), 48V 16.7AH (Samsung cells)
●48V 14.4AH(Samsung cells)
●dual battery
Range
1:1 PAS mode, 40-80KM
Warranty
12 months(Motor & Battery)
Initiating mode
PAS and throttle
Charger
54.6V 2A 100-240V input CE/UL Certification
Charging time
5-7 hours
Controller
48V Intelligent brushless
Loading
150kg
Frame
6061 Aluminum alloy
Wheel rim
Aluminum alloy double wall
Front fork
Suspension aluminum alloy
Zoom
Front brake
Tektro 160 disc brake
Shimano Hydraulic disc brake
Rear brake
Tektro 160 disc brake
Shimano Hydraulic disc brake
Tyre
Kenda 20”*4.0
Anti-stab tire
Gear
SHIMANO 21 Speed with
derailleur
SHIMANO 7/9/27 Speed with
derailleur
PAS
Five adjustable speed, 1:1 pedal assistant
Brake lever
Conjointed shifter with power cut -off brake, shimano series
Display
Shuangye LCD3 with electric brake,USB LED light
Saddle
Soft and comfortable saddle
Other saddle
Luggage carrier
Steel
Mudguard
Plastic
Seat tube
Aluminum alloy
Suspension aluminum alloy
Front light
3W LED headlight with USB charging port
Rear light
Riding light, flashing brakes
Sticker &color
Hotebike
OEM
Certification
CE/TUV/UL
Weight
N.W:25kgs G.W:31kgs
Carton size
131*31*61cm
