2017 newest electric assist bicycle | shuangye ebike

10 years Professional electric bike manufacturers

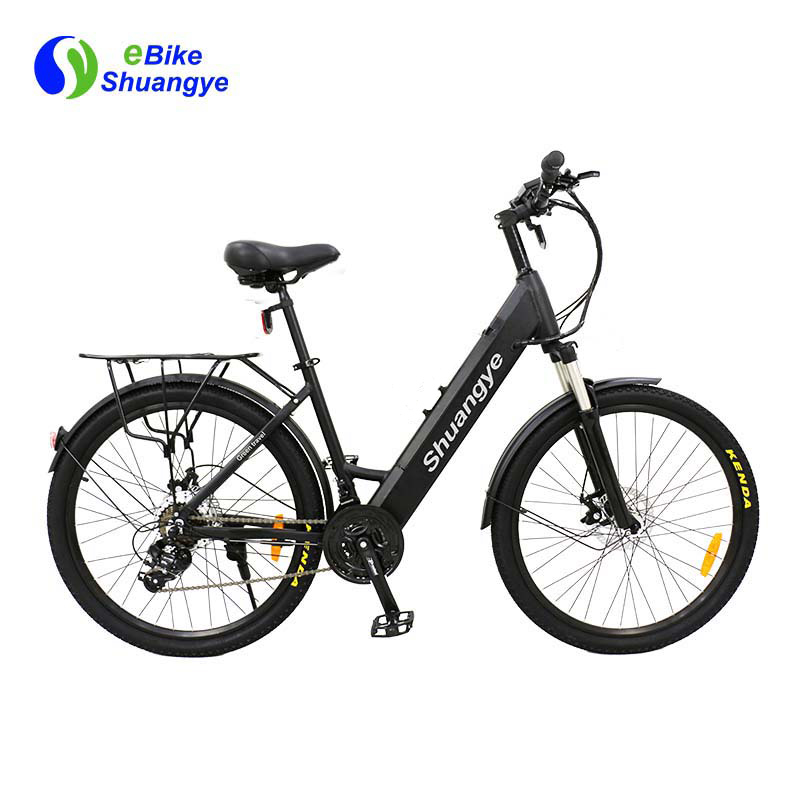

2017 newest electric assist bicycle

2017 newest electric assist bicycle with hidden battery
36V9AH/10AH lithium battery insert frame
36V250W 350W gears motor



electric bicycle2017 newest electric assist bicycle

Electric assist bicycle help save the environment, your health and your wallet at the same time. By riding an electric bicycle, not only will you be saving money on ever rising fuel costs, tax and insurance fees. You will also be getting some valuable exercise and improving your health with minimal effort.
Shuangye Electric Bicycle is a beautiful, stylish and trendy electric bicycle with a comprehensive range of features, designed with comfort and ease of use in mind. perfect for the commute, trip to the shops.Electric bicycle features a 36V battery which offers excellent power and torque especially on hill climbs. With a range on full power pedal assist of up to 40km,bicycle will ensure you a smooth enjoyable journey. It has a maximum speed of 32km/h and can be fully charged and ready to go in 4-6 hours.
The multi-function LCD880 display shows power, distance travelled and speed and also allows the selection of five levels of pedal assist and an easy start option.The throttle can be used during power assist enabling the power to be increased whilst using any of the levels of assist,Shimano 21 transmission system.A5AH26_03With comfort at the forefront of this bicycle ergonomic grips, a suspension saddle and full suspension forks allow for a very comfortable ride, whilst adjustment height on the saddle.

Electric assist bicycle with hidden battery

  • Frame Material: 26/28 inch Aluminium Alloy
  • Color: yellow/dark blue
  • Battery Type: 36v 9AH/10AH Lithium battery
  • Motor: 250W/350W brushless
  • Forks: Front Suspension fork
  • Gears: 21/27 gears
  • Brakes: front and rear 160 disc brake
  • Display: LCD880 display
  • Security: Battery locks on to frame with unique key.A5AH26_01A5AH26_02

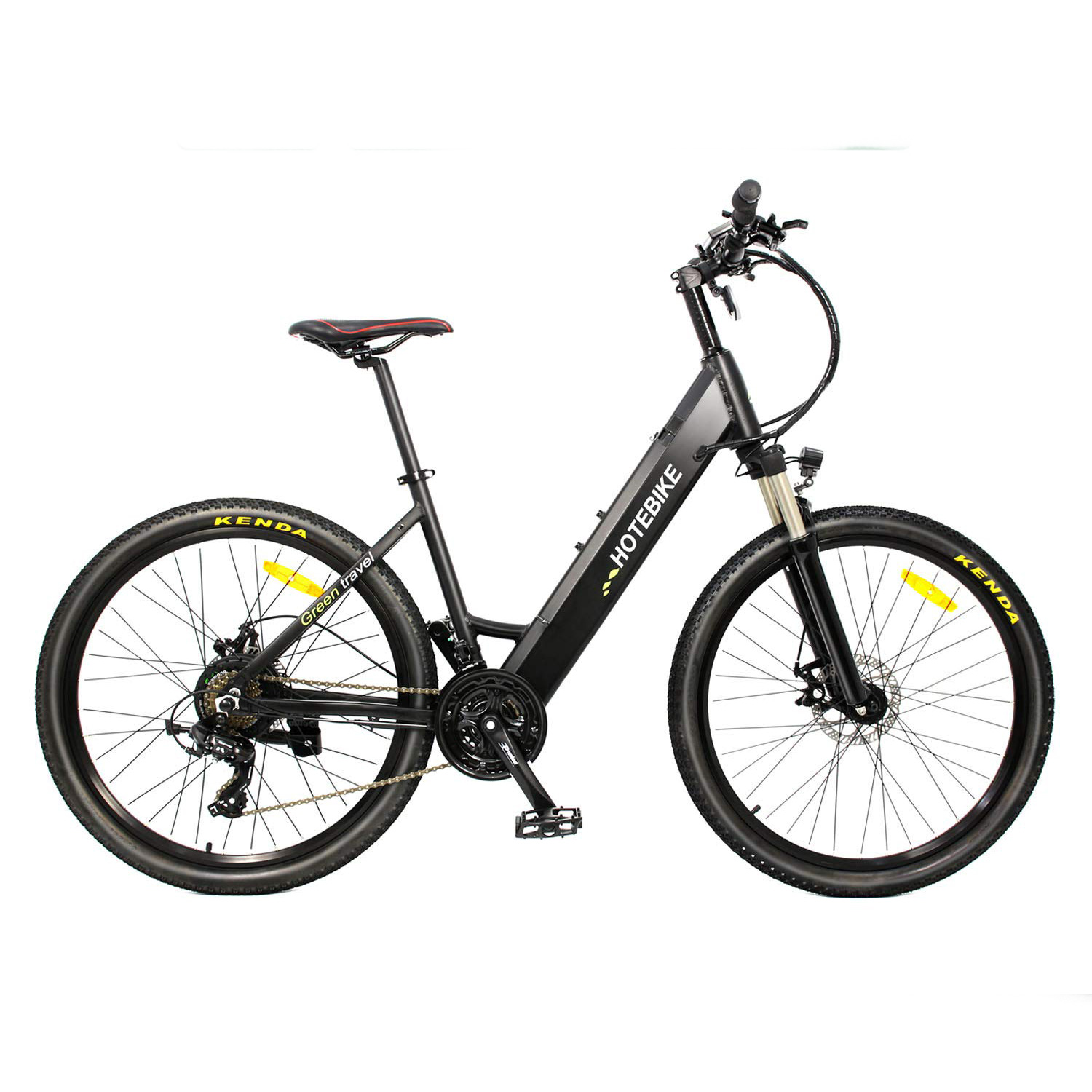

Newest electric assist bicycle hidden battery

                                                                  Specifications  A5AH26
Model Shuangye 26 inch electric bicycle Wheel 26/28 inch wheel
Color yellow/dark blue Tyre 26*1.75
Motor Shuangye 36v 250w brushless motor Gear Shimano 21 gears
initiating mode PAS and throttle PAS Five adjustable speed  1:1 pedal assistant
Battery 36V9AH Lithium battery Chain Rust resistant chain
Range 1:1 PAS mode, 50-80KM Handle bar Aluminum alloy
Warranty motor & battery 1 years crankset Steel
Charger AC100V-240V,42V 2A Saddle Comfortable saddle
Charging time 4-6 hours Display LCD880 Display
Max speed 25km/h or 32km/h headlight 1 W LED headlight
Loading 120kg rear rack Steel
Frame Aluminum alloy frame sticker &color Shuangye(can OEM)
Wheel rim Aluminum alloy Pedal Aluminum
Front fork full aluminum suspension fork Certification TUV CE EN15194
Front brake 160 disc brake Weight N.W: 25kgs      G.W:28kgs
Rear brake 160 disc brake Carton size 149*26*77CM
Climbing ability ≥12° 20'GP container 90PCS(5.69*2.13*2.18)
