city e bike

E-city bike carbon steel folding frame

E-city bike

20 inch carbon steel folding frame
36V 250W brushless motor
36V 9AH/36V 10AH battery
LCD display
CE Certification

Product Details Specification

E-city bike carbon steel folding frame

E-city bike

All those problems are solved with a folding E-city bike. Now a full battery charge can cover a distance of a few dozens of miles, and you can store the bike under your desk. So you still can enjoy the freedom of biking without getting sweaty or ruining your suit. Following is our best folding E-city bike in China. This is a widely popular E-city bike and some upgrades like Shuangye 36v 250w brushless motor , front V- brake and rear expansion brake with motor lock. What’s great about the folding E-city bike is that it offers three or five adjustable speed 1:1 pedal assistant so you can switch between assist mode, throttle only or no assist. The top speed of the bike is 25km/h.

E-city bike (5)E-city bike (4)

The Chainwheel and cranks are made of high quality materials, and we use iron to made it. it can be a perfect match with the chain.The tooth disc connection strength is high, even if the moment of great power, the deformation is small, can let the rider feel up hard, underfoot the force, not superficial sense, up force, will be able to concentrate on driving.

E-city bike (3)E-city bike (6)

E-city bike the quick release: Faster and more convenient for you to replace the things you need to change, It is convenient for you to fold the car faster and narrow your space. Display – the control centre This display guarantees easy and intuitive control of your E-city bike . The viewing area remains clearly visible under all lighting conditions. The separate control allows you to keep your hands safely on the handlebar and you are guaranteed a clear view of all riding data at all times. The shift recommendation feature makes sure you always pedal in the right gear to preserve the battery and extend our range.

E-city bike carbon steel folding frame

Battery: 48V 9AH/10AH 48V 9AH lithium battery
Range per change: 40-50 KM/40-50KM
Motor:36V/48V 250W brushless motor
Frame:20″ high-carbon steel folding frame/aluminum alloy folding
Tyre:20″*1.75
Brake:Front V brake/rear electric brake with motor lock

E-city bike carbon steel folding frame

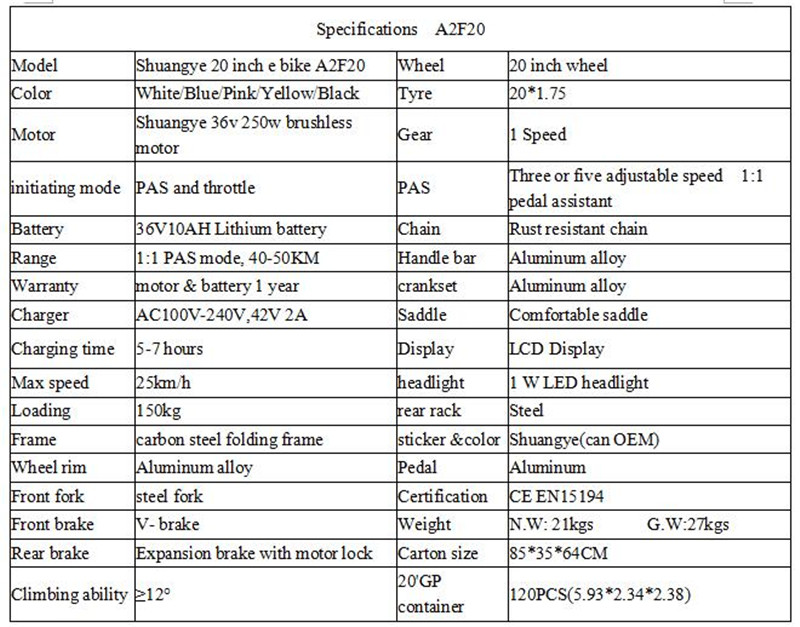

Specifications  A2F20
Model Shuangye 20 inch e bike A2F20 Wheel 20 inch wheel
Color White/Blue/Pink/Yellow/Black Tyre 20*1.75
Motor Shuangye 36v 250w brushless motor Gear 1 Speed
initiating mode PAS and throttle PAS Three or five adjustable speed  1:1 pedal assistant
Battery 36V10AH Lithium battery Chain Rust resistant chain
Range 1:1 PAS mode, 40-50KM Handle bar Aluminum alloy
Warranty motor & battery 1 year crankset Aluminum alloy
Charger AC100V-240V,42V 2A Saddle Comfortable saddle
Charging time 5-7 hours Display LED Display
Max speed 25km/h headlight 1 W LED headlight
Loading 150kg rear rack Steel
Frame carbon steel folding frame sticker &color Shuangye(can OEM)
Wheel rim Aluminum alloy Pedal Aluminum
Front fork steel fork Certification CE EN15194
Front brake V- brake Weight N.W: 21kgs      G.W:27kgs
Rear brake Expansion brake with motor lock Carton size 85*35*64CM
Climbing ability ≥12° 20'GP container 120PCS(5.93*2.34*2.38)
