mountain electric bicycle 36v 500w dual motor | shuangye ebike

10 years Professional electric bike manufacturers

logo-2logo-3

electric mountain bike

mountain electric bicycle 36v 500w dual motor

mountain electric bicycle
36v dual motor and dual battery
26 inch aluminum alloy frame
strong power to climb hills
500w or 750w electric bicycle

Product Details spcifications

mountain electric bicycle 36v 500w dual motor

dual motor electric bike for sales

As a result of having a dual electric power motor bicycle of the present invention to solve the existing electric vehicles is set to climb higher power problem while exceeding the national standard, but also to solve the current electric cars climbing When the motor is easy to heat and due to excessive speed likely to cause road accidents problems, but also to solve the current electric bicycle at the time of the electrical control system failure can not travel problems, a dual electric power motor bicycle of the present invention includes: design novel, easy to manufacture low-cost, good climbing performance, easy to use, safe and reliable. It applies to all current domestic electric vehicles, and can solve the major technical problems of electric vehicles currently exist. Use of electric vehicles of the present invention can satisfy the actual needs of daily life and basic overcome the drawbacks of electric vehicles.

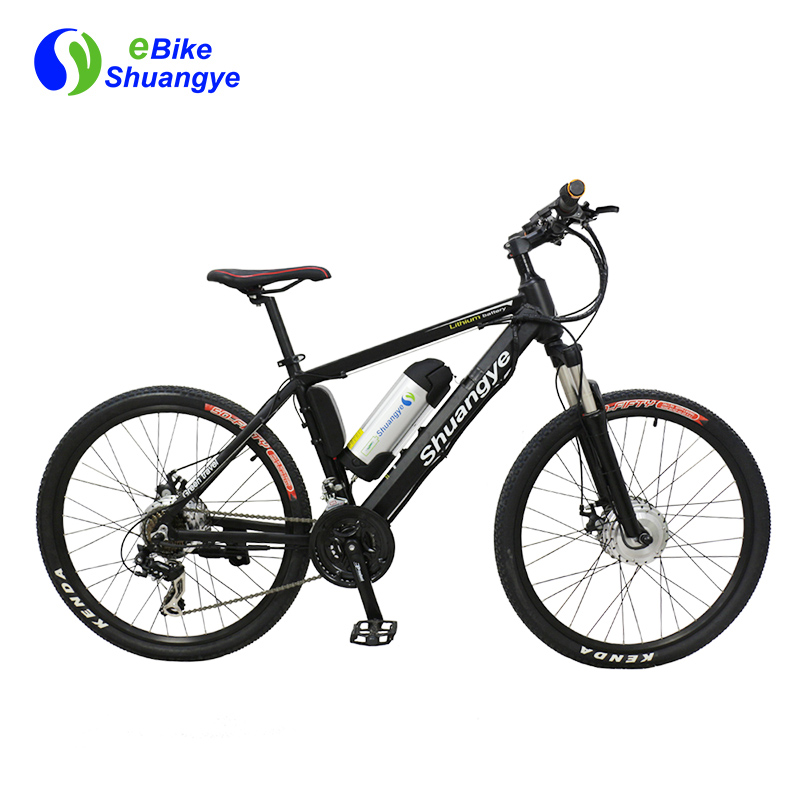

ebike 1

mountain electric bicycle 36v 500w dual motor

The two controllers for the controller A, controller B, controller A system controller for the 250W, another 250w system controller to controller B, controller A, controller B is connected in parallel to form two-magnet type power control two stator motor, form a parallel dual system electrical control system structure.ebike

mountain electric bicycle 36v 500w dual motor

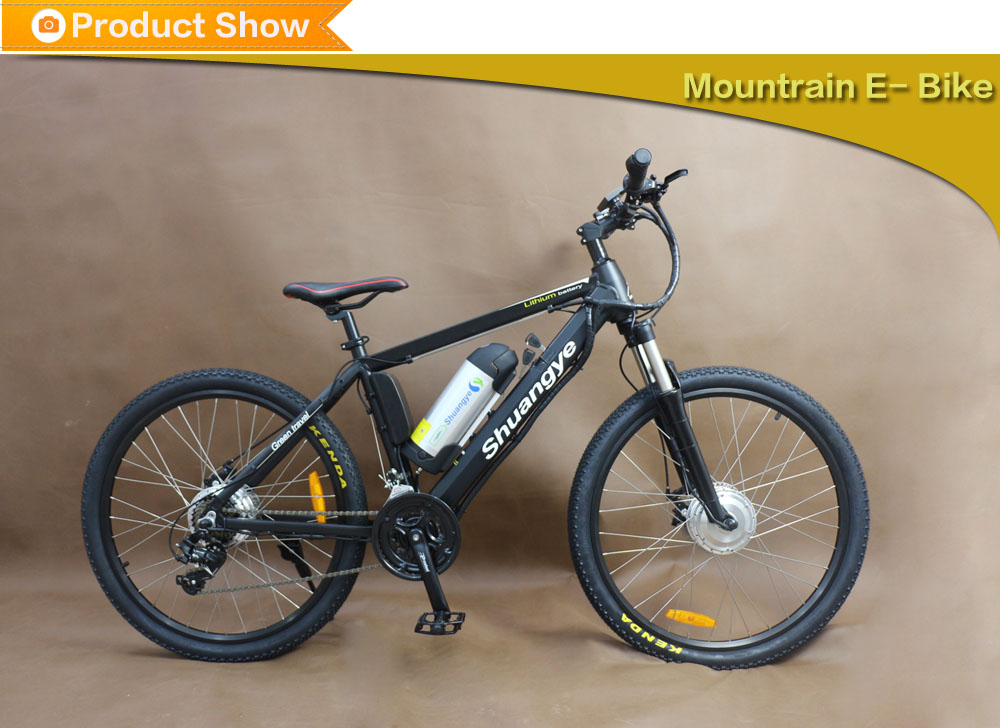

ebike 3

mountain electric bicycle 36v 500w dual motor

mountain electric bicycle

                                                                                       Specifications  A6
Model Shuangye 26 inch e bike A6 Wheel 26 inch wheel
Color Black/White Tyre 26*1.95
Motor Shuangye 36v 500w brushless motor Gear Shman 21 Speed
initiating mode PAS and throttle PAS five adjustable speed  1:1 pedal assistant
Battery dual 36V10AH Lithium battery Chain Rust resistant chain
Range 1:1 PAS mode, 50-70KM Handle bar Aluminum alloy
Warranty motor & battery 1years crankset Aluminum alloy
Charger AC100V-240V,42V 2A Saddle mountain electric bicycle saddle
Charging time 5-7 hours Display LCD Display
Max speed 25km/h 32km/h headlight 1 W LED headlight
Loading 150kg sticker &color Shuangye(can OEM)
Frame Aluminum alloy frame Pedal aluminum
Wheel rim Aluminum alloy Certification CE EN15194
Front fork suspension aluminum fork Weight N.W:27kgs,G.W:34kgs
Front brake 160 disc brake Carton size 136*30*74CM
Rear brake 160 disc brake 20'GP container 100 PCS(5.69*2.13*2.18)
