15 years Professional electric bike factory

logo-3

folding electric bike

20 inch ladies folding electric bicycle A3AL20

Smart electric bike folding frame

36V 10AH lithium battery
36V 350w brushless motor
Max speed 25km/h
front and rear V brake

Product Details specification

20 inch ladies folding electric bicycle

Smart electric bike

Is it possible to travel around the city quickly and easily on two wheels? A question to which the Shuangye folding electric bicycle offers its own answer. It takes the innovative power of smart and transfers it from the fast lane to the bicycle lane. With powerful drive system, long battery range, superior components, comfort and versatility that combines clever functions with advanced technology and outstanding design.This not only makes your journey more enjoyable, but also easier.We invite you to try our folding electric bicycle Shuangye A3-AL20 for yourself. We believe you’ll love it.

Smart electric bike (6)Smart electric bike (1)

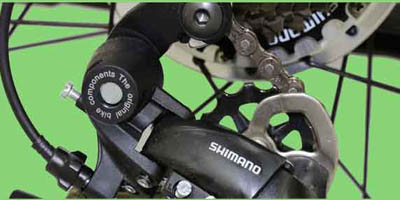

Shimano 7 speed freewheel and derailleur  allows you flexibly shuttle in the city and mountains, enjoy the freedom of your life.Shuangye are available with 250, 350, and 500W as frame or rack batteries for both the active line and performance line. All three offer high energy density, exceptional mileage, long service life, low weight and easy handling.

Smart electric bike (3)Smart electric bike (4)

Folding electric bicycle LCD guarantees easy and intuitive control of your electric push bike. The viewing area remains clearly visible under all lighting conditions. The separate control allows you to keep your hands safely on the handlebar and you are guaranteed a clear view of all riding data at all times. The shift recommendation feature makes sure you always pedal in the right gear to preserve the battery and extend our range.Front headlight upgrade

20 inch ladies folding electric bicycle

Battery: 36V 10AH lithium battery Range per change: 45-55KM Motor:36V 250W brushless motor Derailleur:Shimano Tyre:20″*1.75 Brake:Front/rear V brake

Smart electric bike

Specifications  A3AL20
Model Shuangye 20 inch e bike A3AL20 Wheel 20 inch wheel
Color White/Dark blue Tyre 20*1.75
Motor Shuangye 36v 250w/350w brushless motor Gear Shiman 7 Speed
initiating mode PAS and throttle PAS Three adjustable speed  1:1 pedal assistant
Battery 36V10AH Lithium battery Chain Rust resistant chain
Range 1:1 PAS mode, 40-50KM Handle bar Aluminum alloy
Warranty motor & battery 1 year crankset Aluminum alloy
Charger AC100V-240V,42V 2A Saddle Comfortable saddle
Charging time 5-7 hours Display LED Display
Max speed 25km/h 30km/h headlight 1 W LED headlight
Loading 150kg rear rack steel
Frame Aluminum alloy folding frame sticker &color Shuangye(can OEM)
Wheel rim Aluminum alloy Pedal aluminum
Front fork steel fork Certification CE EN15194
Front brake V- brake Weight N.W:21kgs,G.W:26kgs
Rear brake V- brake Carton size 89*66*40CM
Climbing ability ≥12° 20'GP container 120PCS(5.69*2.13*2.18)
