Bafang DP C240.CAN lcd display dealer manual

Bafang Mid drive motor M600 lcd display dealer manual for DP C240.CAN

The compact LCD display delivers all important information at a glance, even in direct sunlight. Riders can switch between the motor’s support levels using the extremely robust remote control.

lcd display dealer manual nstallation parameters and specifications:
Applicable handlebar size Ø 31.8
Cable length (mm), connector type 0 G5.4
Button cord length (mm) 300/350
More technical parameters
Bluetooth No
USB charging port 5V 500mA
Special function BOOST
Testing and certification
Waterproof grade IP X5
Certification CE / EN 15194 / REACH / ROHS
Display information
Current speed (km/h)
Maximum speed (km/h)
Average speed (km/h) Yes
One-way riding time
One-way riding distance
Total riding distance
One-way riding time is reset to zero
The one-way riding distance is reset to zero.
Electricity is
Error code display Yes
Boost yes
Light perception
Main specifications
Display type:LCD
Display mode: Dot matrix display
Rated voltage: 36/43/48
Assist mode: 0-3/0-5/0-9
Working temperature: -20-45℃
Communication protocol: CAN
Weight (g): 80g

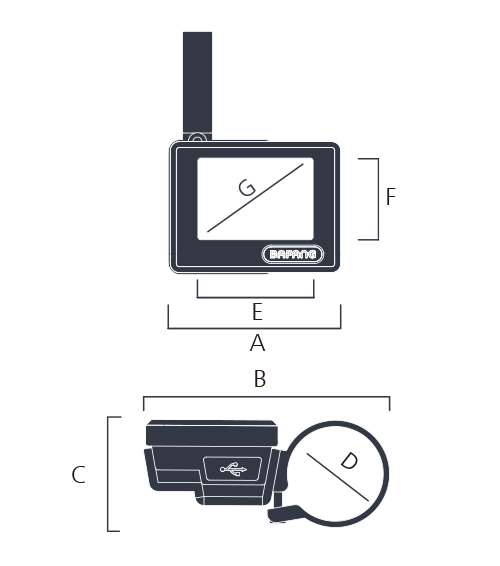

A 56.5mm
B 44 mm
C 28.95 mm
D Ø31.8 mm
E 38.2 mm
F 27.4 mm
G 2″

Bafang Mid drive motor M600 lcd display dealer manual for DP C240.CAN  Download URL
