fat e bike 20 inch folding frame | shuangye ebike

12 years Professional electric bike manufacturers

logo-2logo-3

fat tire electric bike

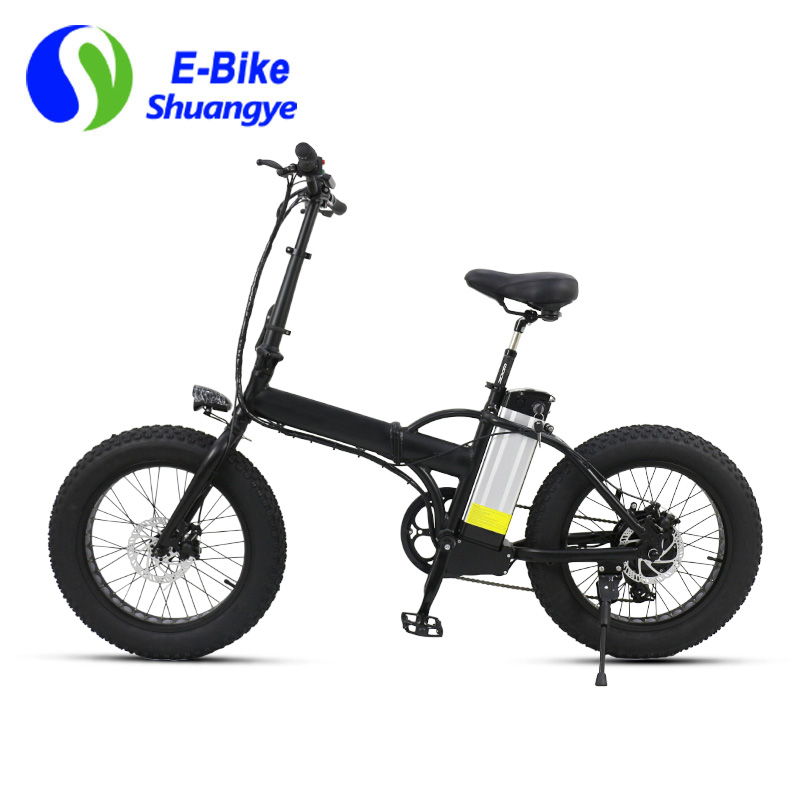

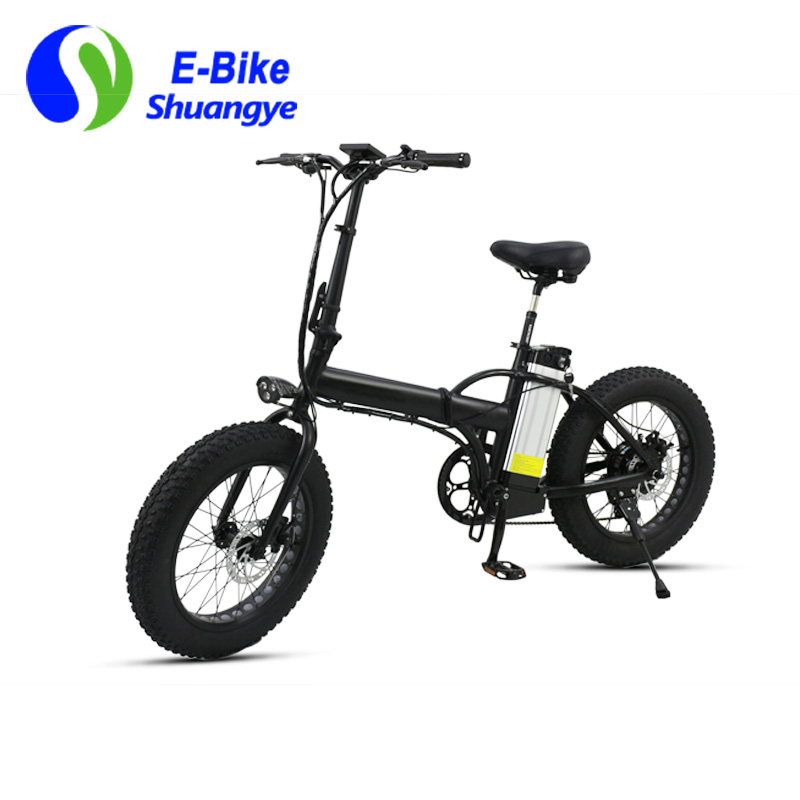

fat e bike 20 inch folding frame A7AM20

Quickly folding fat ebike
20 inch mini fat ebike,40KM on one charge
Folding size:107*75*42cm

Product Details SPECIFICATIONS

fat e bike 20 inch folding frameebike 2

The fat e bike is a high specialized and very smart looking fold up bike. Mounted on the handlebars is a multifunctional LCD power controller which has five different levels of pedal assistance as well as digital speed and odometer readings.
It has a powerful 250W maintenance free motor to power you along and this can be used for both pedal assistance or for free wheeling when you use the simple to operate thumb throttle to control the fat e bike speed.
The powerful 36V Standard Lithium Polymer battery ensures that you should never run out of power. On a medium pedal assistance level you should be able to cycle 40km which is a long way by anyone’s standards. Of course a lower setting will allow you to go even further!
All the parts on the bike are top quality. High spec 7-Speed Shimano gears help you make the most of your riding experience. Both front and rear brakes are 160 disc brake. Powerful LED lights ensure that you are highly visible to other road users and are fitted to both the front and rear. The LED’s are controlled from a button on the handlebars.
Overall this is an excellent bike at a truly great price. It’s very easy to ride, convenient to store and comes fully spec’d.
ebike 3
fat e bike 20 inch folding frame

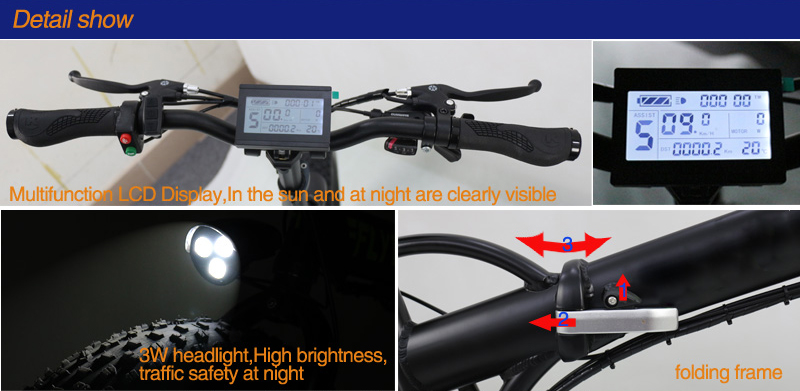

20 inch tire and folding aluminium alloy frame,few seconds to complete the folding(see the picture)

  1. Pull up on the folding safety catch
  2. Open the fold handle
  3. Before and after moving parts, front and rear wheels in a horizontal line, finish folding

ebike 4Front headlight upgrade



fat ebike 20 inch folding frame

                                                                                        Specifications  A7AM20
ModelShuangye 20 inch fat ebike A7Wheel20 inch wheel
ColorWhite/Black/GreenTyre20”*4.0 fat tire
MotorShuangye 36v/48v 250W/350W/500W brushless motorGearShman 7 Speed
Battery36V10AH/12AH 48V15AH
Lithium battery
PASThree adjustable speed  1:1 pedal
assistant
Range1:1 PAS mode, 40-60KMChainRust resistant chain
Warrantymotor & battery 1 yearsHandle barAluminum alloy folding handlebar
ChargerAC100V-240V,42V 2AcranksetAluminum alloy
Charging time5-7 hoursSaddleComfortable Saddle
Max speed25km/h 30km/h 35km/h based on flat road without windDisplayLCD Display
Loading200KGheadlight3 W LED headlight
FrameAluminum Alloy folding framesticker &colorShuangye(can OEM)
Wheel rimAluminum alloyPedalaluminum
Front forksuspension aluminum forkCertificationCE EN15194
Front brake160 disc brakeWeightN.W: 23kgs      G.W:32kgs
Rear brake160 disc brakeCarton size142*34*72CM
Motor Effect≥80%20'GP container75PCS(5.69*2.13*2.18)
