15KG lightweight road electric bicycle | shuangye ebike

12 years Professional electric bike manufacturers

logo-2logo-3

electric road bike

15KG lightweight road electric bicycle with invisible battery

max speed 25km/h
motor power 24V250W
lithium battery 24V10AH
1:1 PAS mode, range 60-100km per charging
4-6 hours charging time
SHIMANO 7/9/21/27 gears with derailleur
LCD display

Product Details

15KG lightweight road electric bicycle with invisible battery

The road e bike A6-R with 24V250W brushless motor and 24V10AH Lithium battery, max speed ups to 25 km/h, max range ups to 60-100km.

IMG_0725

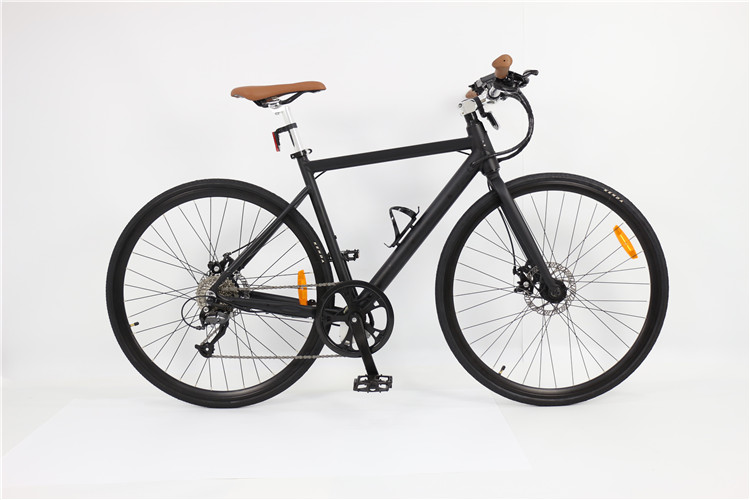

Hidden battery design
We use hidden battery design for this kind of mountain electric bike. The e-bike frame is designed and produced by our own factory. Very special, most people won’t recognize it is an electric bike at their first sight.

IMG_0695

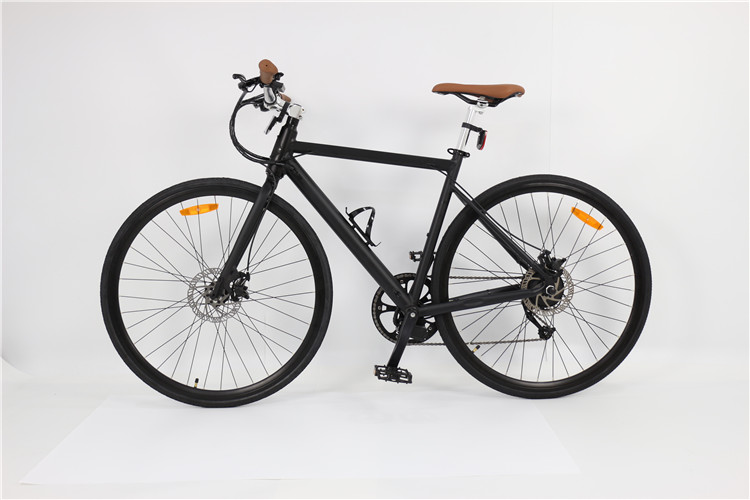

The aluminum alloy frame makes the road e bike more strong, lithium battery and cables are put into the frame, make the road e bike more beautiful. Also the front reflector makes your riding more safe.

IMG_0718

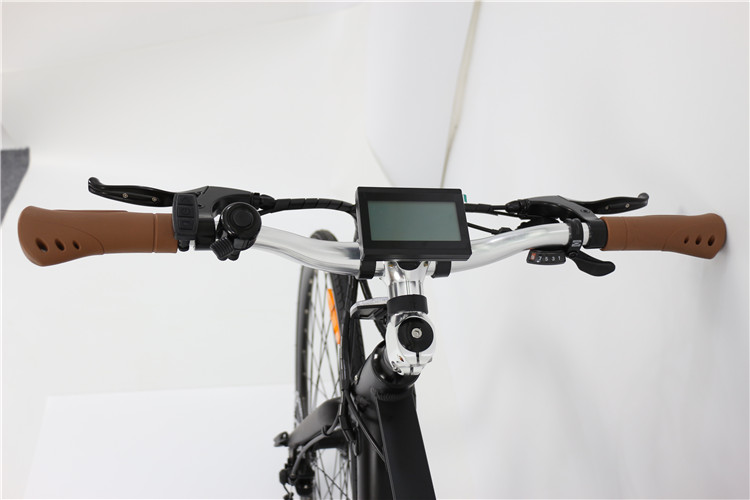

Multi function LCD display
Designed and produced by our own factory, easy to control the quality, can show Distance, Mileage, Temperature, Voltage, Error code and more. You can easy to use it with the manual.

IMG_0717

Brushless motor
Provide with 250W high speed geared brushless motor, max speed is up to 25km/h. It’s so powerful that you do not worry about hills or against wind.

IMG_0715

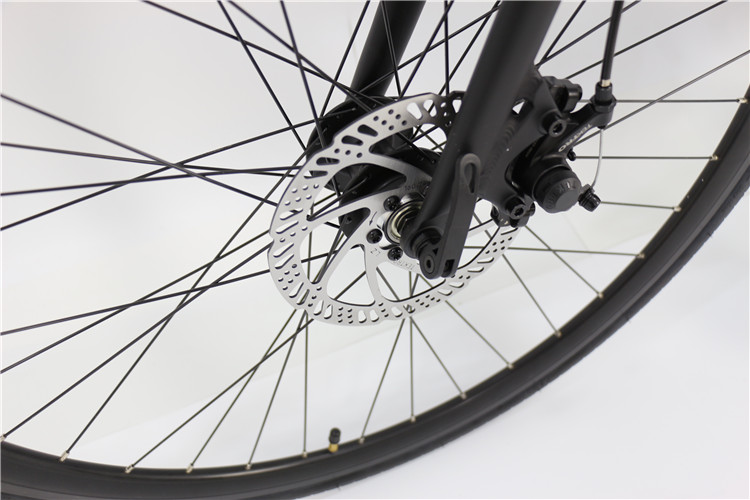

Front and rear 160 disc brake
Keep you safe from any emergency with a break distance within 3 meters. Match with brake lever which is cut-off electricity when braking. The safety of cycling is greatly improved.

Specification sheet

Motor 24V250W brushless motor Max speed 25km/h
Battery 24V 10AH Lithium Battery Charger 42V2A 100-240v input
Charging time 4-6 hours Controller Intelligent brushless
Range 60-100KM Motor & battery Warranty 15 months
Initiating mode Pedal assistant PAS Five adjustable speed, 1:1 pedal assistant
Colour Black Frame 6061 Aluminum alloy
Handle bar 6061 Al alloy black handle bar Display LCD display
Gear SHIMANO 7/9/21/27 Speed Brake lever Aluminum, cut-off electricity when braking
Front fork Aluminum alloy fork Brake TEKTRO 160 disc brake
Tyre 700*25C tyre Chain Rust resistant chain
Crankset Aluminum alloy Pedal Aluminum alloy
Saddle Mountain bike saddle Loading 120kg
Weight N.W:15Kgs     G.W: 19Kgs Carton size 130CM*23CM*70CM
20’GP container 140pcs 40’GP container 280pcs

Company profile

Shuangye electric bike factory has more than 12 years experience produce and sale in electric bikes and ebike conversion kit. The focus of our research and development team was to design the most dependable, efficient, and comfortable electric bikes available.
