Product Details
|
Specification
|
Standard
|
Optional（MOQ≥100）
|
|
Colour
|
White/Black
|
OEM
|
|
Motor
|
36V 250W 350W48V 500W gearless brushless hub-motor
|
●36V 500Wgearless brushless hub-motor
●48V 750W gearless brushless hub-motor ●bafang motor |
|
Max speed
|
25-40 km/h
|
35-45 km/h
|
|
Battery
|
36V 13AH 13.6AH lithium battery with key
|
●36V 15AH, 36V 19.2AH(LG cells), 36V 20AH (Samsung cells)
●48V 13AH,48V 14AH(Samsung cells) ●dual battery |
|
Range
|
1:1 PAS mode, 40-80KM
|
|
|
Warranty
|
12 months(Motor & Battery)
|
|
|
Initiating mode
|
PAS and throttle
|
|
|
Charger
|
54.6V 2A 100-240V input CE/UL Certification
|
|
|
Charging time
|
5-7 hours
|
|
|
Controller
|
48V Intelligent brushless
|
|
|
Loading
|
150kg
|
|
|
Frame
|
6061 Aluminum alloy
|
|
|
Wheel rim
|
Aluminum alloy double wall
|
|
|
Front fork
|
Suspension aluminum alloy
|
Zoom
|
|
Front brake
|
Tektro 160 disc brake
|
Shimano Hydraulic disc brake
|
|
Rear brake
|
Tektro 160 disc brake
|
Shimano Hydraulic disc brake
|
|
Tyre
|
Kenda 20”*4.0
|
Anti-stab tire
|
|
Gear
|
SHIMANO 21 Speed with
derailleur |
SHIMANO 7/9/27 Speed with
derailleur |
|
PAS
|
Five adjustable speed, 1:1 pedal assistant
|
|
|
Brake lever
|
Conjointed shifter with power cut -off brake, shimano series
|
|
|

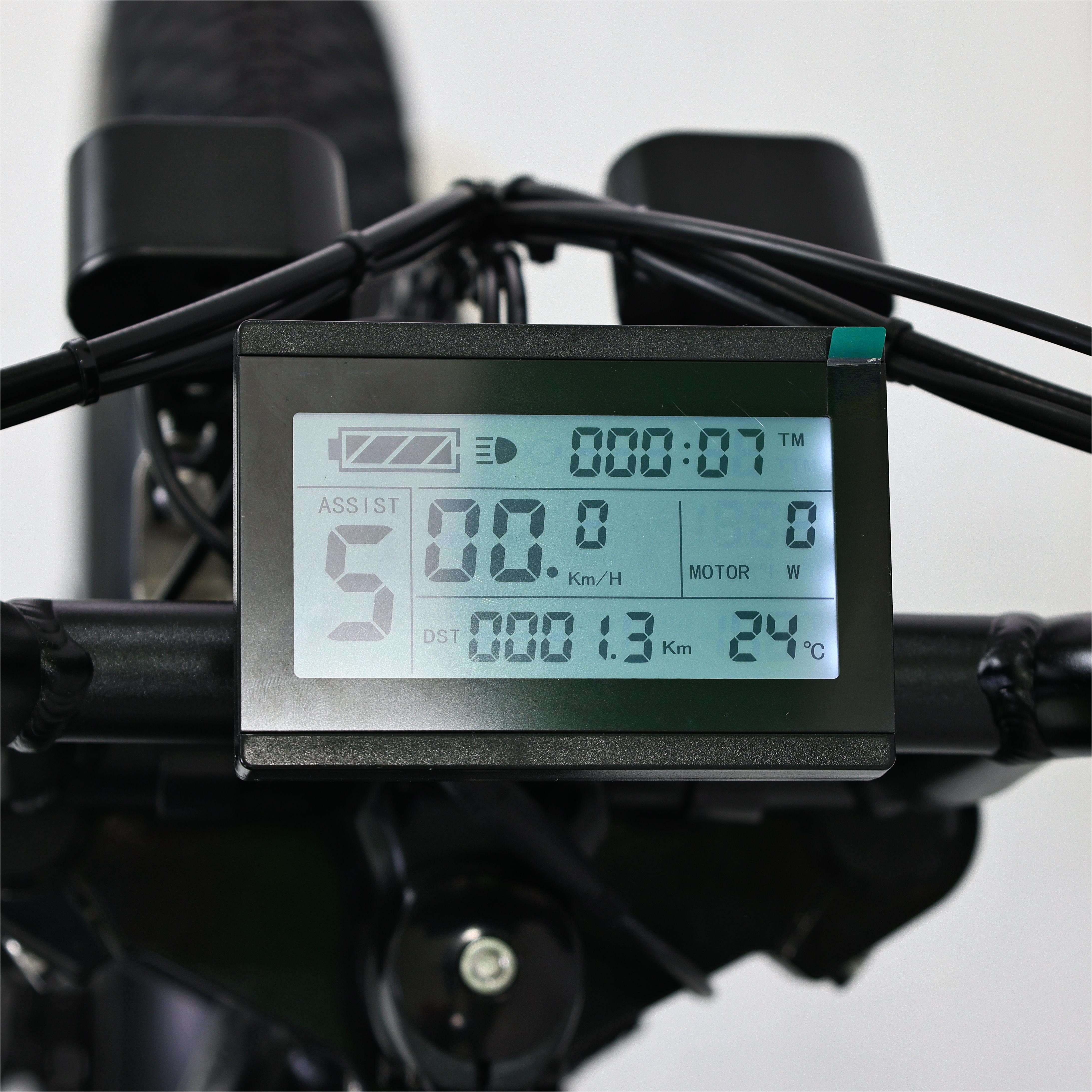

Display
|
Shuangye LCD3 with electric brake,USB LED light
|
|
|
Saddle
|
Soft and comfortable saddle
|
Other saddle
|
|
Luggage carrier
|
|
Steel
|
|
Mudguard
|
|
Plastic
|
|
Seat tube
|
Aluminum alloy
|
Suspension aluminum alloy
|
|

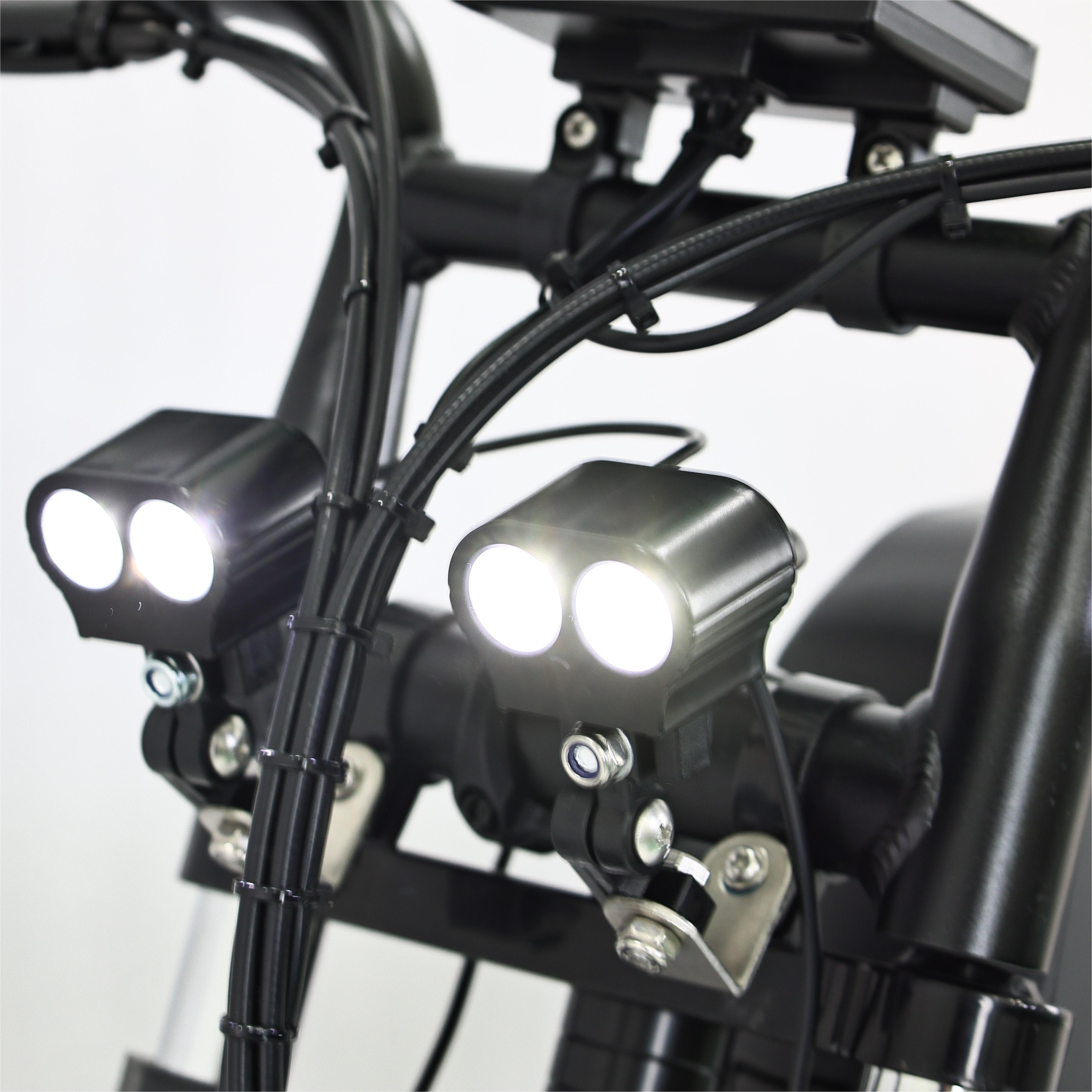

Front light
|
3W LED headlight with USB charging port
|
|
|
Rear light
|
|
Riding light, flashing brakes
|
|
Sticker &color
|
Hotebike
|
OEM
|
|
Certification
|
CE/TUV/UL
|
|
|
Weight
|
N.W:25kgs G.W:31kgs
|
|
|
Carton size
|
131*31*61cm
|
Packing & Delivery
Company profile
We are a professional manufacturer of electric bikes over 14 years located in Zhuhai Guangdong, CN, with four departments: technology, business, after-sales, and finance.
•Offering OEM and ODM service, we can make the motor parameter, battery capacity, logo, package, color as clients’ requirements.
•Offering you sales technical support, for motor and battery, the warranty is about 12 months. controller 15 months, other after-sales issues, etc.
•Sample order is acceptable, but there will be extra cost.
•Payment method: T/T, Western Union, Paypal
We produce electric scooters, electric folding bike, and so on electric bikes.
If you are interested, please contact us to place an inquiry!
