Dual suspension 26 inch electric bike | shuangye ebike

12 years Professional electric bike manufacturers

logo-2logo-3

electric mountain bike

Dual suspension 26 inch electric bike

dual suspension
max speed 30km/h
motor power 36V350W
LCD display
hidden battery design 36V10AH
1:1 PAS mode, range 60-100km per charging
4-6 hours charging time
Shimano 21/27 gears with derailleur

Product Details Specification

Dual suspension 26 inch electric bike

It is all-purpose electric bike that still looks like a bike but feels like a jet.

dual suspension
max speed 30km/h
motor power 36V350W
LCD display
hidden battery design 36V10AH
1:1 PAS mode, range 60-100km per charging
4-6 hours charging time
Shimano 21/27 gears with derailleur

electric bike made

electric bike (1)

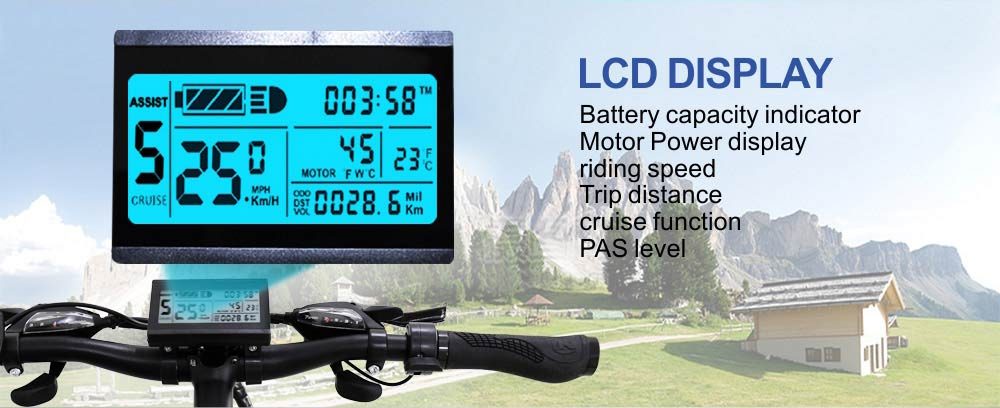

Multi function LCD display
Designed and produced by our own factory, easy to control the quality, can show Distance, Mileage, Temperature, Voltage and more. You can easy to use it with the manual.

electric bike china4

Hidden battery
We use hidden battery design for this kind of mountain electric bike. The ebike frame is designed and produced by our own factory. Very special. Most people won’t recognize it is an electric bike at their first sight. The battery box is removable so you can either charge it in the bike or separately in your room.

electric bike china3

Front and rear 160 disc brake
Keep you safe from any emergency with a break distance within 3 meters. Match with brake lever which is cut-off electricity when braking. The safety of cycling is greatly improved.

electric bike china6

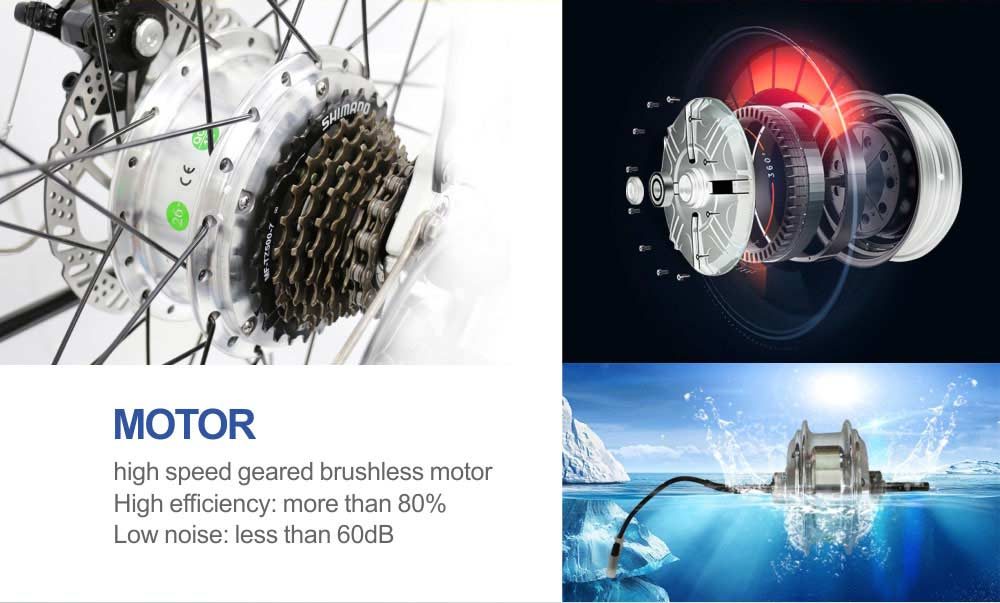

Brushless motor
Provide with 250W/350W high speed geared brushless motor, max speed is up to 25-30km/h. It’s so powerful that you do not worry about hills or against wind.

electric bike china8

Motor 36V 250W/350W brushless motor Max speed 25-30km/h
Battery 36V 9AH/10AH hidden lithium battery Charger 42V2A 100-240v input
Charging time 4-6.5hours Controller Intelligent brushless 36V 250W/350W
Range 60-100KM Motor & battery Warranty 15 months
Initiating mode Pedal assistant(can add thumb  throttle) PAS Five adjustable speed, 1:1 pedal assistant
Colour Black Frame 6061 Aluminum alloy
Handle bar 6061 Al alloy black handle bar Display LCD display
Gear SHIMANO 21/27 Speed with derailleur Brake lever Aluminum, cut-off electricity when braking
Front fork Aluminum alloy suspension fork Suspension Full suspension, front and rear
Brake TEKTRO 160 disc brake Rim 26″ aluminum alloy double wall
Tyre KENDA 26″*1.95/27.5″*1.95 tyre Chain Rust resistant chain
Crankset Aluminum alloy Pedal Aluminum alloy
Saddle Mountain bike saddle Headlight 3W headlight with USB port
Loading 120kg Weight N.W:22kgs      G.W:28kgs
Carton size 136CM*28CM*76CM 20’GP container 95PCS



Motor 36V 250W/350W brushless motor Max speed 25-30km/h
Battery 36V 9AH/10AH hidden lithium battery Charger 42V2A 100-240v input
Charging time 4-6.5hours Controller Intelligent brushless 36V 250W/350W
Range 60-100KM Motor & battery Warranty 15 months
Initiating mode Pedal assistant(can add thumb  throttle) PAS Five adjustable speed, 1:1 pedal assistant
Colour Black Frame 6061 Aluminum alloy
Handle bar 6061 Al alloy black handle bar Display LCD display
Gear SHIMANO 21/27 Speed with derailleur Brake lever Aluminum, cut-off electricity when braking
Front fork Aluminum alloy suspension fork Suspension Full suspension, front and rear
Brake TEKTRO 160 disc brake Rim 26" aluminum alloy double wall
Tyre KENDA 26"*1.95/27.5"*1.95 tyre Chain Rust resistant chain
Crankset Aluminum alloy Pedal Aluminum alloy
Saddle Mountain bike saddle Headlight 3W headlight with USB port
Loading 120kg Weight N.W:22kgs      G.W:28kgs
Carton size 136CM*28CM*76CM 20'GP container 95PCS
